API-6H End Closures, Connectors and Swivels
ASME/ANSI B16 Standards covers pipes and fittings in cast iron , cast bronze, wrought copper and steel.
ASME/ANSI B16.1 - 1998 - Cast Iron Pipe
Flanges and Flanged Fittings
This Standard for Classes 25, 125, and 250 Cast Iron Pipe Flanges and Flanged Fittings
ASME/ANSI B16.3 - 1998 - Malleable Iron Threaded Fittings
This Standard for threaded malleable iron fittings Classes 150, and 300
ASME/ANSI B16.4 - 1998 - Cast Iron Threaded Fittings
This Standard for gray iron threaded fittings, Classes 125 and 250
ASME/ANSI B16.5 - 1996 - Pipe Flanges and Flanged Fittings
The ASME B16.5 - 1996 Pipe Flanges and Flange Fittings standard covers
pressure-temperature ratings, materials, dimensions, tolerances,
marking, testing, and methods of designating openings for pipe flanges
and flanged fittings.
AS 2052 Conduit and Fittings
The standard includes flanges with rating class designations 150, 300,
400, 600, 900, 1500, and 2500 in sizes NPS 1/2 through NPS 24, with
requirements given in both metric and U.S units. The Standard is limited
to flanges and flanged fittings made from cast or forged materials, and
blind flanges and certain reducing flanges made from cast, forged, or
plate materials. Also included in this Standard are requirements and
recommendations regarding flange bolting, flange gaskets, and flange
joints.
ASME/ANSI B16.9 - 2001 - Factory-Made Wrought Steel Buttwelding Fittings
This Standard covers overall dimensions, tolerances, ratings, testing,
and markings for wrought factory-made buttwelding fittings in sizes NPS
1/2 through 48 (DN 15 through 1200).
ASME/ANSI B16.10 - 2000 - Face-to-Face and End-to-End Dimensions of Valves
ASME/ANSI B16.11 - 2001 - Forged Steel Fittings, Socket-Welding and Threaded
This Standard covers ratings, dimensions, tolerances, marking and
material requirements for forged fittings, both socket-welding and
threaded.
ASME/ANSI B16.12 - 1998 - Cast Iron Threaded Drainage Fittings
ASME/ANSI B16.14 - 1991 - Ferrous Pipe Plugs, Bushings and Locknuts with Pipe Threads
This Standard for Ferrous Pipe Plugs, Bushings, and Locknuts with Pipe Threads
ASME/ANSI B16.15 - 1985 (R1994) - Cast Bronze Threaded Fittings
This Standard pertains primarily to cast Class 125and Class 250 bronze
threaded pipe fittings. Certain requirements also pertain to wrought or
cast plugs, bushings, couplings, and caps.
ASME/ANSI B16.18 - 1984 (R1994) - Cast Copper Alloy Solder Joint Pressure Fittings
ASME/ANSI B16.20 - 1998 - Metallic Gaskets for Pipe Flanges-Ring-Joint, Spiral-Would, and Jacketed
This standard covers materials, dimensions, tolerances, and markings for
metal ring-joint gaskets, spiral-wound metal gaskets, and metal
jacketed gaskets and filler material. These gaskets are dimensionally
suitable for used with flanges described in the reference flange
standards ASME/ANSI B16.5, ASME B16.47, and API-6A. This standard covers
spiral-wound metal gaskets and metal jacketed gaskets for use with
raised face and flat face flanges. Replaces API-601 or API-601.
ASME/ANSI B16.21 - 1992 - Nonmetallic Flat Gaskets for Pipe Flanges (c) dimensions and allowable tolerances.
ASME/ANSI B16.22 - 1995 - Wrought Copper and Copper Alloy Solder Joint Pressure Fittings
The Standard establishes specifications for wrought copper and wrought
copper alloy, solder-joint, seamless fittings, designed for use with
seamless copper tube conforming to ASTM B 88 (water and general plumbing
systems), B 280 (air conditioning and refrigeration service), and B 819
(medical gas systems), as well as fittings intended to be assembled
with soldering materials conforming to ASTM B 32, brazing materials
conforming to AWS A5.8, or with tapered pipe thread conforming to ASME
B1.20.1. This Standard is allied with ASME B16.18, which covers cast
copper alloy pressure fittings. It provides requirements for fitting
ends suitable for soldering.
ASME/ANSI B16.23 - 1992 - Cast Copper Alloy Solder Joint Drainage Fittings (DWV)
The Standard establishes specifications for cast copper alloy solder
joint drainage fittings, designed for use in drain, waste, and vent
(DWV) systems. These fittings are designed for use with seamless copper
tube conforming to ASTM B 306, Copper Drainage Tube (DWV), as well as
fittings intended to be assembled with soldering materials conforming to
ASTM B 32, or tapered pipe thread conforming to ASME B1.20.1. This
standard is allied with ASME B16.29, Wrought Copper and Wrought Copper
Alloy Solder Joint Drainage Fittings - DWV. It provides requirements for
fitting ends suitable for soldering.
ASME/ANSI B16.24 - 1991 (R1998) - Cast Copper Alloy Pipe Flanges and Flanged Fittings
This Standard for Classes 25, 125, 250, and 800 Cast Iron Pipe Flanges and Flanged Fittings
ASME/ANSI B16.25 - 1997 - Buttwelding Ends
ASME/ANSI B16.26 - 1988 - Cast Copper Alloy Fittings for Flared Copper Tubes
ASME/ANSI B16.28 - 1994 - Wrought Steel Buttwelding Short Radius Elbows and Returns
ASME/ANSI B16.29 - 1994 - Wrought Copper and Wrought Copper Alloy Solder Joint Drainage Fittings (DWV)
MSS STANDARDS
MSS SP-43: Wrought Stainless Steel Butt Welding Fittings
MSS SP-75: Specification for High Test Wrought Butt Welding Fittings -WPHY 42,WPHY 46,WPHY 52,WPHY 60,WPHY 65,WPHY70,WPHY80
MSS SP-79: Socket Welding Reducer Inserts
JIS STANDARDS
JIS B2311: Steel Butt Welding Pipe Fittings for ordinary use
JIS B2312: Steel Butt Pipe Fittings
JIS B2313: Steel Plate Butt Welding Pipe Fittings
JIS B2316: Steel Socket Welding Pipe Fittings
BS STANDARDS
BS 1640: Steel Butt Welding Pipe Fittings for petroleum Industry-Part 1: Wrought Carbon and ferritie Alloy Steel Fittings
BS 1965: Butt Welding Pipe Fittings for pressure purpose Part 1:Carbon Steel & Austenitic Stainless Steel
ASTM STANDARDS
ASTM A105: Forging Carbon Steel for Piping Component
ASTM A181: Forging Carbon Steel for General Purpose Piping
ASTM A182: Forged or Rolled Alooy Steel Pipe Flanges, Forged Fittings, and Valves and Parts for high temperature Service
ASTM A234: Pipe Fittings of Wrough Carbon Steel and alloy steel for Moderate and elevated Temperatures
ASTM A350: Forgin Carbon AND Low-Alloy Steel, requiring Notch Toughness Testing for pipiping Components
ASTM A403: Wrough Autenitic Stainless Steel Pipe Fittings
ASTM A420: Pipe Fittings of Wrough Carbon Steel and alloy steel for low Temperatures Service
ASTM A815: Wrough Ferritic, Ferritic/Autenitic and martensitic Stainless Steel Pipe Fittings
ASTM 860: Wrough High Strenght, Low Alloy Steel, Butt Welding Fittings
DEP 31.40.21.34-Gen Carbon and low alloy steel pipeline flanges for
use in oil and gas operations (amendments/supplements to MSS
SP-44)
DEP 31.40.21.30-Gen Pipeline fittings (amendments/supplements to MSS SP-75)
DEP 31.40.21.31-Gen.Pipeline isolating joints (amendments/supplements to MSS SP-75)
ISO 15590-2 Petroleum and natural gas industries - induction bends,
fittings and flanges for pipeline transportation systems Part 2:
Fittings
IPS-M-PI-150: Standard for Flanges and Fittings
AS 1281 Cement Mortar Lining of Steel Pipes and Fittings
AS 1579 Arc Welded Steel Pipes and Fittings for Water and Waste Water
AS 4087 Metallic Flanges for Waterworks Purposes
AS 4321 Fusion-Bonded Medium Density Polyethylene Coating and Lining for Pipes and Fittings
AS2053-1Conduits and fittings for electrical installations Part 1 General requirement
AS 2053-7 Conduits and fittings for electrical installations - Rigid metal conduits and fittings
AS 3688 water supply - Metallic fittings and end connectors
TOTAL GS EP PLR 222 Carbon steel flanges and branch outlet fittings and forged
components for pipelines (sweet service)
TOTAL GS EP PLR 223 Carbon steel tees for pipelines (sweet service
Elbows, Tees, Reducers, Unions, etc...
Black and Galvanized Maileable Iron, Cast Iron
Flanged Cast Steel and Cast Iron Fittings

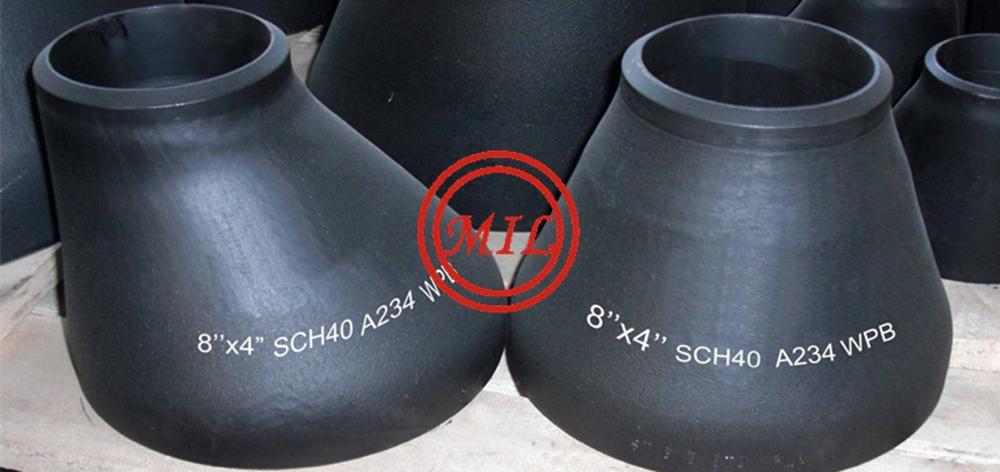

ASTM A-234 WPB Buttweld Fittings SCH 40-SCH 160
Forged Steel Fittings, Screwed and Socketweld in 2000#, 3000# and 6000# Classes in Carbon, Stainless and Alloy
Stainless Steel Fittings in Type 304, 316, 321, 304L, 316L, 321L, Screwed or Buttweld
Sanitary Fittings for Breweries, Dairies and Beverage and Fodd Procesing Industries
Cast Iron Fittings for AWWA Service in Mechanical Joint, Flanged End, Push-on, PVC, CPVC and DWV Plastic Fittings
Bronze and Copper Fittings
Cast Iron Soil Pipe Fittings
Forged Carbon Steel Flanges Type Slip-on, Welding Neck, Threaded and Blind
ANSI Classes 150, 300, 600, 900, 1500 PSI
Stainless Steel Flanges in Type 304, 316
Cast Iron Black and Galvanized
Companion Flanges
PVC Schedule 80 Flanges
AWWA Clamp and Coupling Products
AWWA Bronze Service Fittings
Materials
Carbon Steel for Moderate Temperature
ASTM 234 WPB-WPC
High Yeld carbon steel for pipeline and offshore
ASTM A 860 WPHY42-46-52-60-65-70-80
Carbon Steel for low temperature
ASTM A 420 WPL6
Carbon nickel steel for low temperature
ASTM A 420 WPL3
Carbon Molybdenum steel
ASTM A 234 WP1
Chromium Molybdenum steel
ASTM A 234 WP5-9-11-12-22
Austenitic Stainless steel
ASTM A403 WP304-316-321-347
Nickel and Nickel Alloys
ASTM B366
Ferritic Steel
ASTM 815 WP27-33-429-430-430TI-446 (Duplex)
Ferritic/Austenitic Steel
UNS S331803 (Duplex)
UNS S32750-S32760-32550 (Superduplex)
Martensitic Steel
ASTM 815 WP410
Titanium alloy
ASTM B363
Steel Olets Range: 15 NB up to 100 NB 3000 LBS, 6000 LBS & 9000 LBS available with NACE MR 01-75
Form: l Sockolet l Thredolet l Elbolet l
Insert Weldolet Range: 15 NB up to 600 NB in SCH 5S, 10S, 10, 20, 40S,
40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS available with
NACE MR 01-75.
Form: l Weldolet l Sweepolet Stainless Steel Olets Standard: ASTM / ASME A/SA 182
Grade: 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316LN, 317, 317L,
321, 321H, 347, 347 H Nickel Alloy Olets Standard: ASTM / ASME SB 564 /
160 / 472
Grade: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL
(825), UNS 6600, (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625
(INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), UNS
8020 (ALLOY 20 / 20 CB 3) Carbon Steel & Alloy Steel Olets
Standard: ASTM / ASME A/SA 105 / 350 LF 2.
Standard: ASTM / ASME A/SA 182 GR
Grade: F 5, F 9, F 11, F 12, F 22, F 91. Duplex Steel & Copper Alloy Olets Standard: ASTM / ASME A/SA 182
Grade: F 44, F 45, F51, F 53, F 55, F 60, F 61.
Standard: ASTM / ASME SB 61 / 62 / 151 / 152
Grade: UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600
(CU -NI-90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C
10300, C 10800, C 12000, C 12200.
| TEES |
| ASME B31.8/ MSS SP 75 WPHY 65 /ASME B16.9 |
| NB |
OD |
Cener To end |
|
|
| Mm |
In |
D1×D2 |
C |
M |
| 20×20 |
3/4×3/4 |
25×2526.7×26.7 |
29 |
29 |
| 20×15 |
3/4×1/2 |
25×2026.7×21.3 |
29 |
29 |
| 25×25 |
1×1 |
32×3233.4×33.4 |
38 |
38 |
| 25×20 |
1×3/4 |
32×2533.4×26.7 |
38 |
38 |
| 32×32 |
1.1/4×1.1/4 |
38×3842.2×42.2 |
48 |
48 |
| 32×25 |
1.1/4×1 |
38×3242.2×33.4 |
48 |
48 |
| 40×40 |
1.1/2×1.1/2 |
45×4548.3×48.3 |
57 |
57 |
| 40×25 |
1.1/2×1 |
45×3248.3×33.4 |
57 |
57 |
| 50×50 |
2×2 |
57×5760.3×60.3 |
64 |
64 |
| 50×25 |
2×1 |
57×3260.3×33.4 |
64 |
51 |
| 65×65 |
2.1/2×2.1/2 |
76×7673×73 |
76 |
76 |
| 65×40 |
2.1/2×1.1/2 |
76×4570.3×48.3 |
76 |
67 |
| 80×80 |
3×3 |
89×89 |
86 |
86 |
| 80×50 |
3×2 |
89×5788.9×60.3 |
86 |
76 |
| 100×100 |
4×4 |
108×108114.3×114.3 |
105 |
105 |
| 100×50 |
4×2 |
108×57114.3×60.3 |
105 |
89 |
| 125×125 |
5×5 |
133×113141.3×141.3 |
124 |
124 |
| 125×80 |
5×3 |
133×89141.3×88.9 |
124 |
111 |
| 150×150 |
6×6 |
159×159168.3×168.3 |
143 |
143 |
| 150×100 |
6×4 |
159×108168.3×114.3 |
143 |
130 |
| 200×200 |
8×8 |
219×219 |
178 |
178 |
| 200×100 |
8×4 |
219×108219.1×114.3 |
178 |
156 |
| 250×250 |
10×10 |
273×273 |
216 |
216 |
| 250×125 |
10×5 |
273×133273.1×141.3 |
216 |
191 |
| 300×300 |
12×12 |
325×325323.9×323.9 |
254 |
254 |
| 300×200 |
12×8 |
325×219323.9×219.1 |
254 |
229 |
| 350×350 |
14×14 |
377×377355.6×355.6 |
279 |
279 |
| 350×200 |
14×8 |
377×219355.6×219.1 |
279 |
248 |
| 400×400 |
16×16 |
426×426406.4×406.4 |
305 |
305 |
| 400×250 |
16×10 |
426×273406.4×273.1 |
305 |
283 |
| 450×450 |
18×18 |
478×478457×457 |
343 |
343 |
| 350×250 |
18×10 |
478×273457×273.1 |
343 |
308 |
| 500×500 |
20×20 |
529×529508×508 |
381 |
381 |
| 500×300 |
20×12 |
529×325508×323.9 |
381 |
346 |
| 550×550 |
22×22 |
559×559 |
419 |
419 |
| 550×400 |
22×16 |
559×406.4 |
419 |
381 |
| 600×600 |
24×24 |
630×630610×610 |
432 |
432 |
| 600×400 |
24×16 |
630×426610×406.4 |
432 |
406 |
| 650×650 |
26×26 |
660×660 |
495 |
495 |
| 700×700 |
28×28 |
720×720711×711 |
521 |
521 |
| 700×400 |
28×16 |
720×426711×406.4 |
521 |
457 |
| 750×750 |
30×30 |
762×762 |
559 |
559 |
| 750×500 |
30×20 |
762×508 |
559 |
508 |
| 800×800 |
32×32 |
820×820813×813 |
597 |
597 |
| 800×500 |
32×20 |
820×529813×508 |
597 |
533 |
| 850×850 |
34×34 |
846×846 |
635 |
635 |
| 850×600 |
34×24 |
846×610 |
635 |
584 |
| 900×900 |
36×36 |
920×920914×914 |
673 |
673 |
| 900×500 |
36×20 |
920×529914×508 |
673 |
584 |
| 950×950 |
38×38 |
965×965 |
711 |
711 |
| 950×600 |
38×24 |
965×610 |
711 |
635 |
| 1000×1000 |
40×40 |
1020×10201016×1016 |
749 |
749 |
| 1100×700 |
44×28 |
1020×7201118×711 |
813 |
698 |
| 1150×1150 |
46×46 |
1168×1168 |
851 |
800 |
| 1150×800 |
46×32 |
1168×813 |
851 |
749 |
| 200×1200 |
48×48 |
1220×12201219×1219 |
889 |
838 |
| 1200×650 |
48×26 |
1219×660 |
889 |
762
|
|
|
|
评论
发表评论
